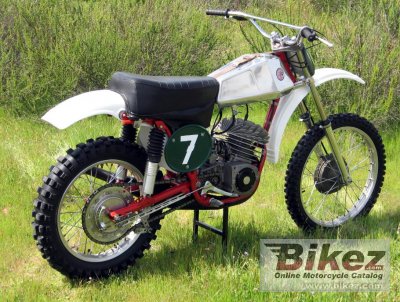

1976 CZ 250 MotoCross Type 980.5 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1976 CZ 250 MotoCross Type 980.5.

Basic Specs

Year1976
MakeCZ
ModelCZ 250 MotoCross Type 980.5
Cost

Engine

Displacement246.20 ccm (15.02 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression11.5:1
Bore/Stroke70.0 x 64.0 mm (2.8 x 2.5 inches)
Valves/Cylinder
FuelingCarburettor. JIKOV 2933 SE / JIKOV 2934 CD
IgnitionMagneto flywheel, voltage 6V
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower34.00 HP (24.8 kW)
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity8.00 litres (2.11 gallons)
Emissions

Chassis

Frame TypeTubular
Rake
Trail
Front SuspensionTelescopic oil shock
Front Travel200 mm (7.9 inches)
Rear SuspensionHydropneumatic spring unit
Rear Travel90 mm (3.5 inches)
Seat
Seat Height
Alt. Seat Height
Total Height1,090 mm (42.9 inches)
Total Length2,100 mm (82.7 inches)
Total Width840 mm (33.1 inches)
Ground Clearance180 mm (7.1 inches)
Wheelbase1,420 mm (55.9 inches)
Dry Weight99.5 kg (219.4 pounds)
Wet Weight107.5 kg (237.0 pounds)

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesExpanding brake (drum brake)
Front Brake Diameter180 mm (7.1 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter180 mm (7.1 inches)
Wheels

Comments

It appears you're interested in specifications for the CZ 250 MotoCross Type 980.5. This Cross / motocross model is powered by a Single cylinder, two-stroke engine with 246.20 ccm (15.02 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Carburettor. JIKOV 2933 SE / JIKOV 2934 CD allowing this machine to produce its 34.00 HP (24.8 kW) horsepower and torque. According to our records engine heat of the CZ 250 MotoCross Type 980.5 is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, Tubular. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The CZ 250 MotoCross Type 980.5 was launched in 1976, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
