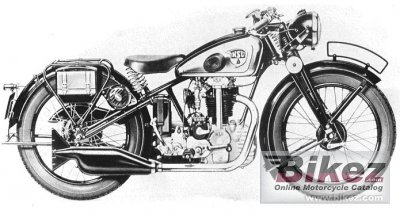

These are the known mechanical and performance specifications for your 1940 NSU 351 OSL.
Basic Specs

Engine
Displacement346.00 ccm (21.11 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke75.0 x 79.0 mm (3.0 x 3.1 inches)
Valves/Cylinder
FuelingCarburettor. Graetzin KE 25/43
Ignition
Exhaust
Lubrication
CoolingAir
Performance
Horespower18.00 HP (13.1 kW)
Torque
Top Speed110.0 km/h (68.4 mph)
Chassis
Frame TypeOpen double steel
Rake
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
SeatSingle spring-mounted
Seat Height
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,420 mm (55.9 inches)
Dry Weight110.0 kg (242.5 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre3.25-19
Rear Tire/Tyre3.25-19
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
WheelsSpoked
